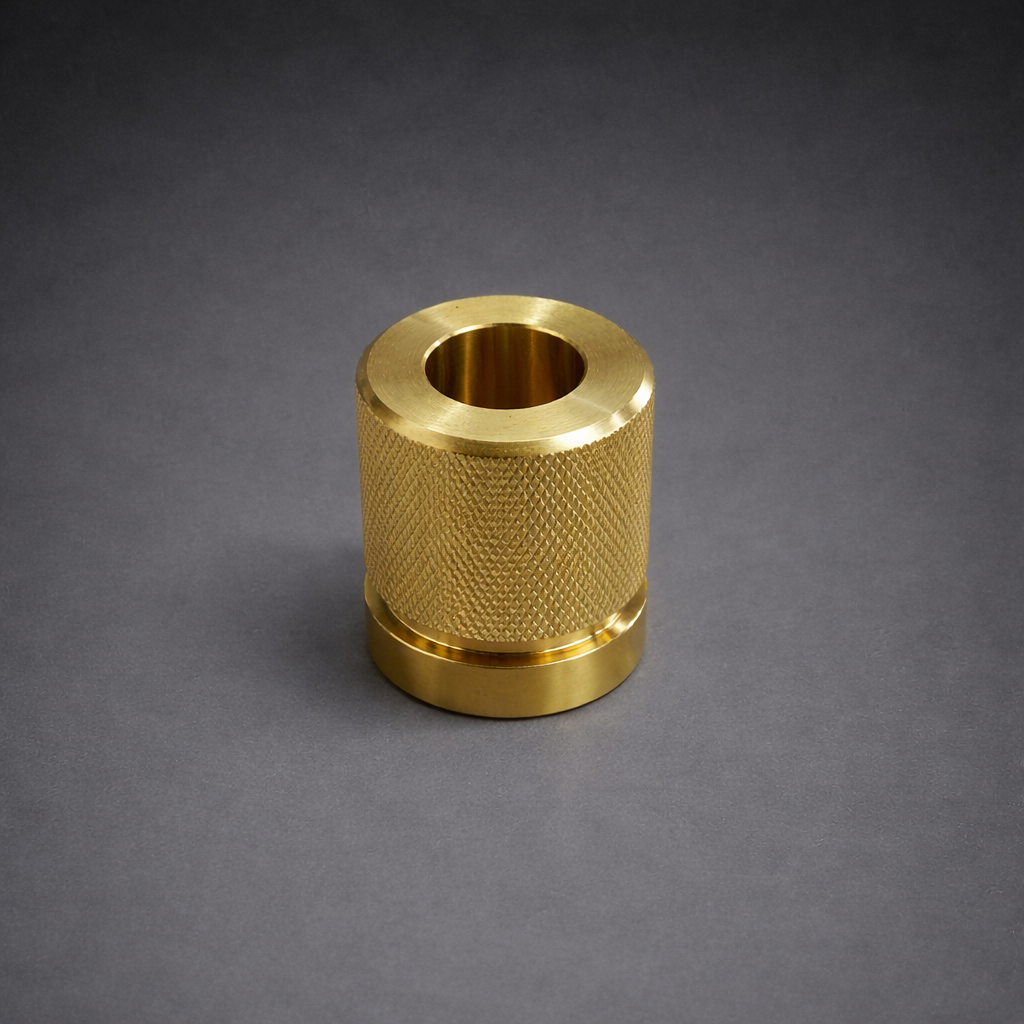

The images shown on this page are intended solely to illustrate typical insert part structures and common processing methods. Common surface treatments include silver plating, tin plating, and various surface patterning options.
Specific material selection, processing methods, and structural designs will be confirmed according to customer project requirements and technical documentation.
Insert Parts
Application and Structural Characteristics
Insert parts are embedded metal components used in electrical systems, insulation structures, and industrial assemblies, primarily serving functions such as structural fixing, connection support, and assembly positioning.
These components are typically integrated into plastics, rubber, or insulation materials and play a critical role in load bearing and connection within the overall structure.
In practical applications, insert parts are commonly used in cable accessories, electrical connection points, and related industrial components, where dimensional accuracy, assembly consistency, and long-term stability are essential.
Common Material Grades
| Type | Typical Grades |
|---|---|
| Copper (Pure Copper) | T1, T2, TU1 (Oxygen-Free Copper) |
| Brass (Cu-Zn Alloy) | H59, H62, H65 |
| Aluminum Alloy | 6061, 6063, 5052 |
Material grades can be supplied per customer drawings/standards (GB / ASTM / EN, etc.).
Common Process Options
| Process Type | Options |
|---|---|
| Plating | Silver Plating (Ag), Tin Plating (Sn) |
| Surface Texture | Knurling / Patterning (Straight, Diagonal, Diamond, etc.) |
| Surface Finishing | Brushing / Polishing |
| Edge Treatment | Deburring / Chamfering |
**Disclaimer
The above product images, materials, and parameters are provided as typical application examples of insert parts, intended to illustrate common structural forms and usage scenarios.
Actual product structures, material selections, processing methods, and performance requirements shall be subject to customer-provided drawings and technical specifications.
