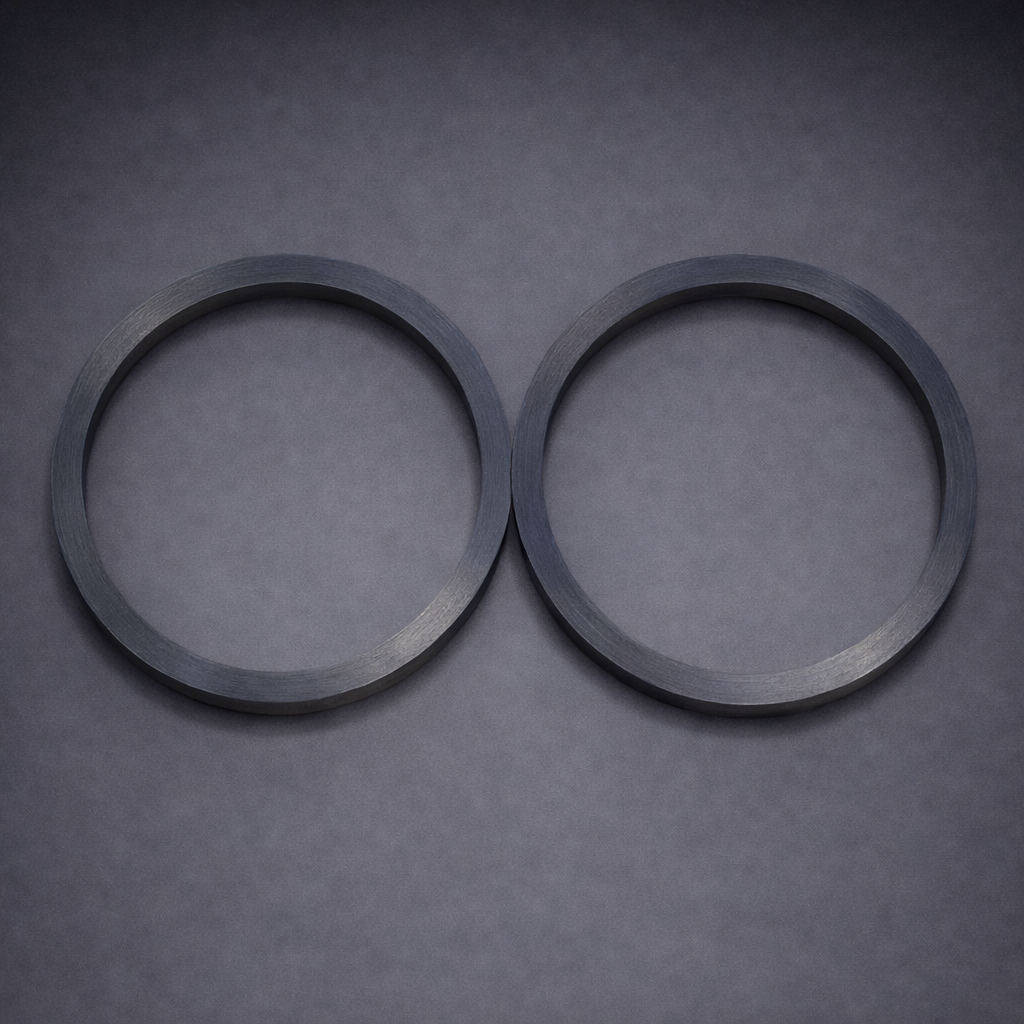

The images shown on this page are intended solely to illustrate typical structures and common forms of amorphous cores. Products are available in various structural forms such as toroidal and other common configurations.
Specific material specifications, structural designs, and performance parameters will be confirmed according to customer project requirements and technical documentation.
Amorphous Cores
Application and Structural Characteristics
Amorphous cores are magnetic materials primarily characterized by low magnetic loss and are widely used in power and electronic systems with high requirements for energy efficiency and loss reduction.
These products offer significant advantages in reducing no-load losses and improving overall system efficiency, making them suitable for applications with clear energy-saving objectives.
In practical applications, amorphous cores are commonly used in power distribution equipment, transformers, and related electromagnetic components, where stable magnetic performance is required during long-term operation. Depending on system design and operating conditions, products can be matched in terms of material specifications, structural forms, and dimensional configurations to meet different application requirements.
Typical Parameters
| Parameter | Value |
|---|---|
| Saturation Induction (Bs) | 1.56 T |
| Curie Temperature | 410 °C |
| Maximum Permeability (μmax) | >20×10⁴ |
| Coercivity (Hc) | <2.4 A/m |
| Remanence (Br) | 1.0 T |
| Core Loss (50 Hz, 1.4 T) | <0.13 W/kg |
**Disclaimer
The above product images, materials, and parameters are provided as typical application examples of amorphous cores, intended to illustrate common usage scenarios and structural forms.
Actual material selection, structural design, and performance requirements shall be subject to customer-provided drawings and technical specifications.
