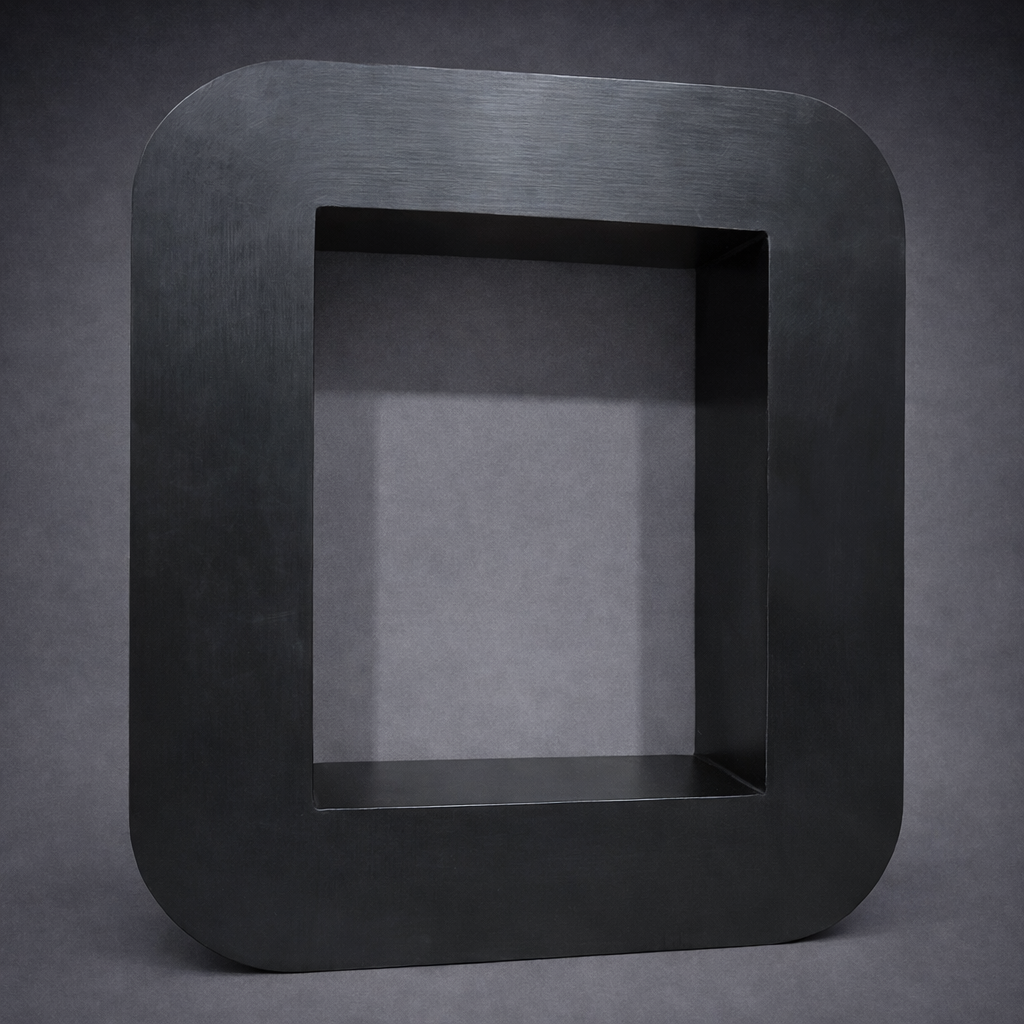

The images shown on this page are intended solely to illustrate typical structures and common forms of nanocrystalline cores. Products are available in various structural forms such as toroidal, split cores, and other common configurations.
Specific material specifications, structural designs, and performance parameters will be confirmed according to customer project requirements and technical documentation.
Nanocrystalline Cores
Application and Material Characteristics
Nanocrystalline cores are advanced magnetic materials characterized by excellent magnetic performance and are primarily used in power and electronic systems with high requirements for loss control, frequency characteristics, and measurement accuracy.
These products exhibit stable magnetic behavior over a wide frequency range and are suitable for applications where energy efficiency and signal quality are critical.
In practical applications, nanocrystalline cores are commonly used in current transformers, precision measurement devices, power quality monitoring systems, and related electromagnetic components. Depending on system design and operating conditions, products can be matched in terms of material specifications, structural forms, and dimensional configurations to meet different performance and stability requirements.
Typical Parameters
| Parameter | Value |
|---|---|
| Saturation Induction (Bs) | 1.25 T |
| Curie Temperature | 560 °C |
| Maximum Permeability (μmax) | >8×10⁴ |
| Coercivity (Hc) | <0.8 A/m |
| Remanence (Br) | 0.6 T |
| Core Loss (20 kHz, 0.5 T) | <25 W/kg |
